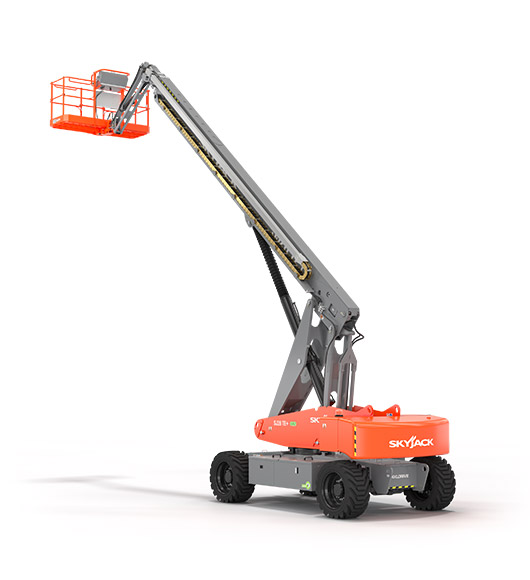

SIMPLY ELECTRIC, SIMPLY MORE.
Skyjack’s new battery powered rough terrain telescopic boom features high platform capacities and provide a clean, quiet, sustainable rental solution with zero emissions, lower operating costs and increased utilisation.
ECO
Rental companies and major contractors face increasing demands for sustainability information. Skyjack has introduced its ECO mark to support our customers by providing products that deliver benefits in environmental performance and long-term sustainability.
SKYCODED™
A proven and reliable, relay-based control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
EASYDRIVE™
This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction.
AXLDRIVE™
An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.
| SJ28 TE+ | ||
|---|---|---|
| Work Height | 28.22 m | |
| Platform Height | 26.22 m | |
| Platform Size | 0.91 m x 2.44 m | |
| Stowed Width | 2.51 m | |
| Tailswing | 1.53 m | |
| Stowed Height | 3.15 m | |
| Transportation Height | 3.15 m | |
| Stowed Length | 12.49 m | |
| Transportation Length | 10.85 m | |
| Ground Clearance | 0.40 m | |
| Wheelbase | 3.355 m | |
| Rotation | 360° Continuous | |
| Platform Rotation | 175° | |
| Jib Length | 1.68 m | |
| Jib Range +/- | 70° / 60° | |
| Weight | 16,275 kg | |
| Gradeability | 45° | |
| Turning Radius (Inside) | 3.36 m | |
| Turning Radius (Outside) | 6.83 m | |
| Axle Oscillation | 6 cm | |
| Drive Speed (High speed) | 4.8 km/h | |
| Capacity | 300 kg / 454 kg | |
| Horizontal Reach | 20.80 m | |
| Wind Rating | 2/3 @ 12.5 m/s | |
| Tire Type | Foam-Filled | |
| Tire Size | 18-625 | |
| Hydraulic Reservoir | 150 L |
| accessories and options | SJ28 TE+ | |
|---|---|---|
| 36” x 96” PLATFORM | ||
| BATTERY OPTIONS | ||
| WHITE NOISE ALARM |
