SUPERIOR WORKING HEIGHT CLASS LEADING UP-AND-OVER ACCESS

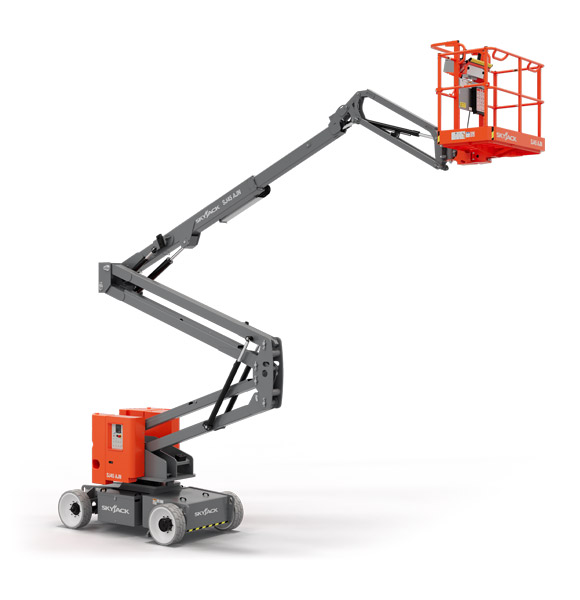

Skyjack’s new SJ45 AJN and SJ45 ARJN battery powered electric articulated slab booms have been developed to provide a clean, quiet, sustainable rental solution with no emissions, lower operating costs and increased utilisation.
SKYCODED™
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
ACCESSORYZERS™
Skyjack offers a full line of ACCESSORYZERS™ to improve your machine’s versatility. These manufacturer-approved accessories are designed to add functionality to your machine and convenience for the operator. Whether it’s helping you get materials to the work site, protecting equipment from the weather, or enhancing productivity, Skyjack has the right accessory for the job.
Why Skyjack
- Superior working height of up to 51’ (15.54 m)
- Class leading up-and-over capability – 25’ 7” (7.8 m)
- Machine width that is 12 inches narrower than standard machines in the 45’ (13.7 m) height class.
- The narrow 4’ 11” (1.5 m) machine width allows for access through standard double doors and in confined spaces
- Low stowed height 6’ 6” (1.98 m)
- Features EASYDRIVE™ and SKYRISER™
- The SJ45 ARJN represents one of the few machines in this class with a rotating jib which provides 180 degree horizontal movement to allow precise positioning of the platform and increased worker productivity
| SJ45 AJN | SJ45 ARJN | |
|---|---|---|
| Work Height | 15.69 m | 15.71 m |
| Platform Height | 13.69 m | 13.71 m |
| Up and Over Height | 7.8 m | 7.8 m |
| Platform Size | 0.76 x 1.47 m | 0.76 x 1.47 m |
| Stowed Width | 1.5 m | 1.5 m |
| Tailswing | 0.15 m | 0.15 m |
| Stowed Height | 1.98 m | 1.98 m |
| Transportation Height | 1.98 m | 1.98 m |
| Stowed Length | 6.37 m | 6.93 m |
| Transportation Length | 6.11 m | 6.57 m |
| Ground Clearance | 7.6 cm | 7.6 cm |
| Wheelbase | 2 m | 2 m |
| Rotation | 355° NC | 355° NC |
| Platform Rotation | 175° | 175° |
| Jib Length | 1.42 m | 1.42 m |
| Jib Range +/- | 145° (+75° / -70°) | 145° (+75° / -70°) |
| Weight | 6,832 kg | 7,076 kg |
| Gradeability | 30% | 30% |
| Turning Radius (Inside) | 1.12 m | 1.12 m |
| Turning Radius (Outside) | 3.45 m | 3.45 m |
| Drive Speed (Stowed) | 4.8 km/h | 4.8 km/h |
| Drive Speed (Raised) | 0.6 km/h | 0.6 km/h |
| Capacity | 227 kg | 227 kg |
| Horizontal Reach | 6.72 m | 6.82 m |
| Local Floor Load (With Rated Load) | 214 psi | 219 psi |
| Ground Bearing Pressure (With Rated Load) | 168 psi | |
| Overall Floor Load (With Rated Load) | 483 psf | 499 psf |
| Maximum # of Persons | 2 | 2 |
| Wind Rating | 1 @ 12.5 m/s | 1 @ 12.5 m/s |
| Tire Type | Solid, NM | Solid, NM |
| Tire Size | 600 x 190 | 600 x 190 |
| accessories and options | SJ45 AJN | SJ45 ARJN |
|---|---|---|
| BATTERY OPTIONS | ||
| BIO OIL | ||
| CONTROL BOX COVER | ||
| FLASHING LIGHT | ||
| NON DESTRUCTIVE TESTING | ||
| SIDE SPRING HINGED ENTRY GATE | ||
| TOOL CADDY | ||
| WHITE NOISE ALARM | ||
| ELEVATE |
TOOL CADDY
ELEVATE
